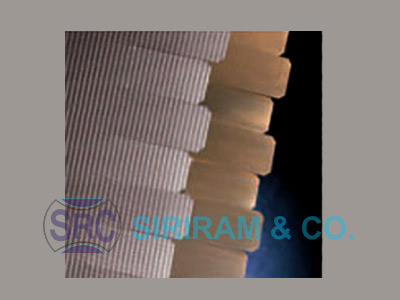

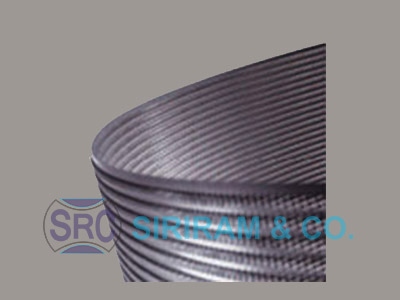

Perforated Screens

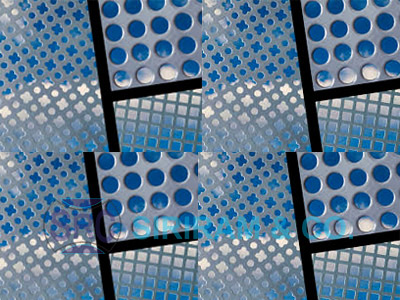

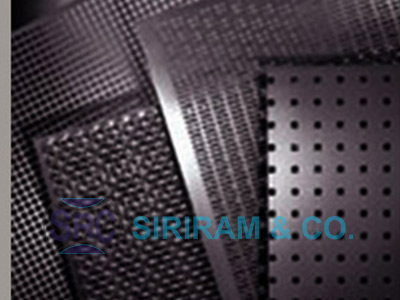

Siriram know-how in perforation is a decade old and comprises of whole series. Multi punch units perforate plates or coils of mild Steel Stainless Steel,Aluminium, Brass, Copper, Titanium, Plastics. etc. in defferent shapes i.e. round,Square,Obolong.We can perforate sheets from 0.5mm to 50 mm upto 10mm thickness,with a maximum width of 1.5mtrs. in various hole patterns and as per customers requirement / design.

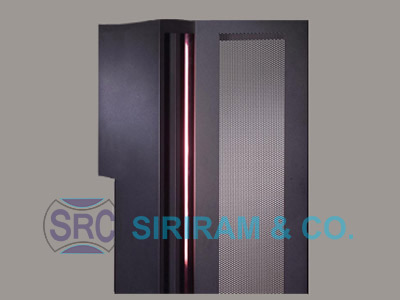

Our products are not only used for Industrial purposes but even Architects recognize the aesthetic charm of perforated plates.

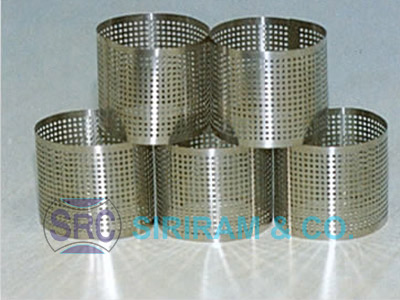

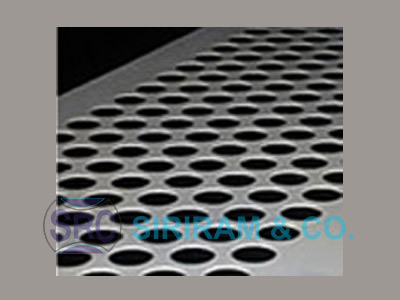

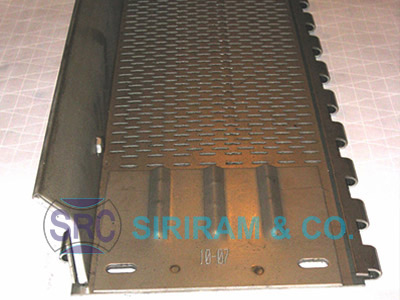

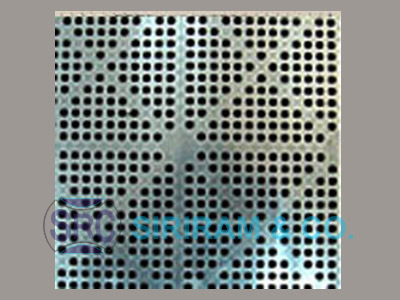

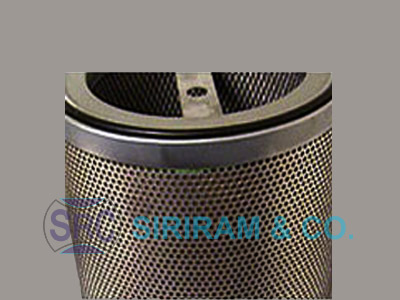

Perforated screens Diffuser plates, washing, conveying, sorting and other ancillary equipment screens, all are available with slot, round hole or square hole perforations in various materials and thicknesses.
| APPLICATION | HOLE SIZE | CENTRE | OPEN AREA | MATERIAL | THICKNESS |
| CENTRIFUGAL | 0.37 X 4.00 MM (0.015* X 0.157*) |
1.17 X 5.85 MM (0.048* X 0.221*) |
32.40% | Stainless | 0.40 / 0.50 / 0.80 MM (0.016*- > 0.024*) |
| CENTRIFUGAL | 0.37 X 4.00 MM (0.015* X 0.157*) |
1.17 X 5.85 MM (0.048* X 0.221*) |
22.40% | Brass | 0.63 MM (0.025*) |
| CENTRIFUGAL | 0.50 MM (0.020*) |
1.09 MM (0.0429*) |
20.00% | Stainless | 0.40 / 0.50 MM (0.016*- 0.020*) |
| CENTRIFUGAL | 0.50 MM (0.020*) |
1.09 MM (0.0429*) |
20.00% | Brass | 0.63 MM (0.025*) |
| CENTRIFUGAL | 0.58 MM (0.023*) |
1.40 MM (0.0552*) |
18.00% | Stainless | 0.40 / 0.50 / 0.60 MM (0.016*- > 0.024*) |
| CENTRIFUGAL | 0.58 MM (0.023*) |
1.40 MM (0.0552*) |
18.00% | Brass | 0.63 MM (0.025*) |
| CENTRIFUGAL | 0.80 MM (0.031*) |
1.30 MM (0.0513*) |
34.30% | Stainless | 0.40 / 0.50 / 0.60 MM (0.016*- > 0.024*) |
| CENTRIFUGAL | 0.80 MM (0.031*) |
1.30 MM (0.0513*) |
34.30% | Brass | 0.63 MM (0.025*) |
| MUD FILTER | 0.50 MM (0.020*) |
1.09 MM (0.043*) |
19.60% | Stainless | 0.30-0.40 MM (0.012* . 0.016) |
